Hydraulic bottle jack, 2 to 100 tonnes
The standard hand-pumped bottle jack, in sizes from 2 to 100 tonnes, with screw extension on the smaller models.
- Capacity
- 2 to 100 t
- Hydraulic lift
- 90 to 170 mm
- Variants
- 10 models
We usually reply within 1–2 working days with price and delivery.
Used for
- Vehicle and workshop lifting
- Machine installation
- General heavy lifting
Features
- Hand lever pump with removable handle
- Hydraulic lift plus mechanical extension on 2 to 20 t models

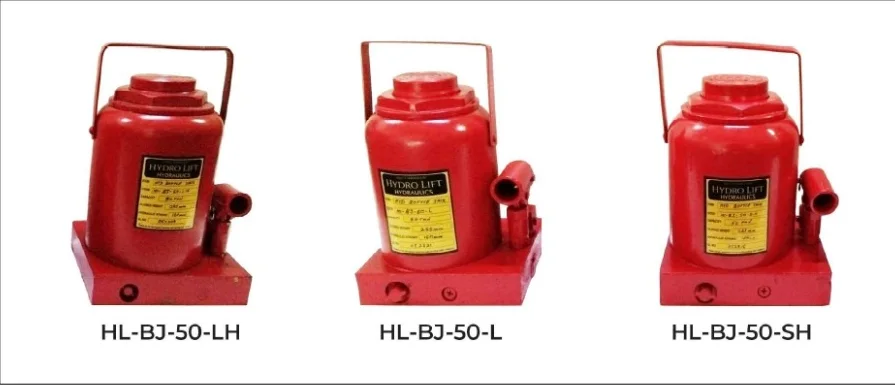

- Heavy 30 to 100 t models in long, short and low-height forms
Specifications
| Model | Capacity (t) | Closed height (mm) | Hydraulic lift (mm) | Mechanical extension (mm) | Total height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| HLA-BJ-2 | 2 | 180 | 90 | 50 | 285 | 2.3 |
| HLA-BJ-6 | 6 | 215 | 115 | 60 | 360 | 3.3 |
| HLA-BJ-10 | 10 | 230 | 130 | 60 | 390 | 6.0 |
| HLA-BJ-16 | 16 | 230 | 150 | 60 | 435 | 8.5 |
| HLA-BJ-20 | 20 | 240 | 150 | 60 | 450 | 11.5 |
| HLA-BJ-30 | 30 | 255 | 150 | — | 405 | 12 |
| HLA-BJ-50-L | 50 | 255 | 150 | — | 405 | 17.5 |
| HLA-BJ-50-SH | 50 | 265 | 150 | — | 415 | 27 |
| HLA-BJ-50-LH | 50 | 290 | 150 | — | 440 | 32 |
| HLA-BJ-100 | 100 | 340 | 170 | — | 510 | 68 |
No model matches. Clear the filter to see all models.
Scroll the table sideways to see every column.
Dimensions are as supplied by the manufacturer and may change. Ask us to confirm before you order.
How to order
- Choose the modelPick it from the table, or tell us the load, size and pressure and we suggest one.
- Send us the detailsThe model code from the table. Quantity. Where it will be used (so we can check it suits).
- We confirmYou get the price, stock position and delivery time, usually within 1–2 working days.
