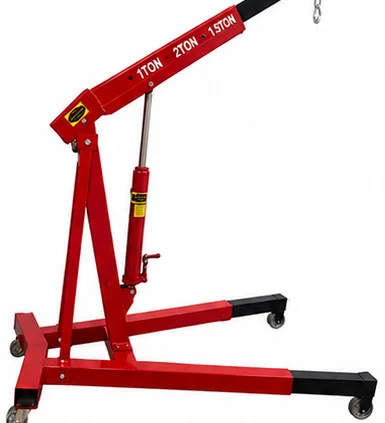

Hydraulic floor crane (engine crane), foldable and non-foldable
A workshop crane with a hydraulic boom for engines and heavy parts, in foldable and fixed-leg versions.
- Types
- Foldable, fixed
- Max lift
- 1955 to 2000 mm
- Closed height
- 300 to 560 mm
We usually reply within 1–2 working days with price and delivery.
Used for
- Engine and gearbox removal
- Workshops and garages
- Maintenance bays
Features
- Foldable model packs away with legs folded
- Non-foldable model for fixed workshop use
- Hydraulic boom lift
Specifications
| Model | Type | Base width at back (mm) | Base length (mm) | Base width at front (mm) | Hook closed height (mm) | Hook lifting height (mm) |
|---|---|---|---|---|---|---|
| HLA-FE-2 | Foldable | 760 | 1630 | 1000 | 300 | 2000 |
| HLA-FC-3 | Non-foldable | 780 | 1825 | 990 | 560 | 1955 |
No model matches. Clear the filter to see all models.
Scroll the table sideways to see every column.
Dimensions are as supplied by the manufacturer and may change. Ask us to confirm before you order.
How to order
- Choose the modelPick it from the table, or tell us the load, size and pressure and we suggest one.
- Send us the detailsThe model code from the table. Quantity. Where it will be used (so we can check it suits).
- We confirmYou get the price, stock position and delivery time, usually within 1–2 working days.
