Pumps and motors · Pumps
Hydraulic hand pump, 800 bar
Hand-lever pumps that drive jacks, cylinders and tools, in four sizes from 1.2 to 13 litres of oil.
- Pressure
- 800 bar
- Tank
- 1.2 to 13 L
- Models
- 4
We usually reply within 1–2 working days with price and delivery.
Used for
- Driving jacks, cylinders and pullers
- Workshop and field hydraulics
- Test and set-up work
Features
- 800 bar maximum working pressure
- Single and double (internal) plunger types
- Accessories: distribution blocks (1 inlet, 4 or 8 outlets), hoses and gauges
Specifications
| Model | Max pressure (bar) | Tank (L) | Flow (cc / stroke) | Plunger | Weight without oil (kg) |
|---|---|---|---|---|---|
| HLA-HP-12/800/1.2 | 800 | 1.2 | 2.5 | Single | 5 |
| HLA-HP-3012/800/3 | 800 | 3 | 17.5 / 2.5 | Double (internal) | 11 |
| HLA-HP-5012/800/7 | 800 | 7 | 49 / 2.8 | Double (internal) | 18 |
| HLA-HP-5012/800/13 | 800 | 13 | 49 / 2.8 | Double (internal) | 21 |
No model matches. Clear the filter to see all models.
Dimensions are as supplied by the manufacturer and may change. Ask us to confirm before you order.
How to order
- Choose the modelPick it from the table, or tell us the load, size and pressure and we suggest one.
- Send us the detailsThe model code from the table. Quantity. Where it will be used (so we can check it suits).
- We confirmYou get the price, stock position and delivery time, usually within 1–2 working days.
More in Pumps and motors

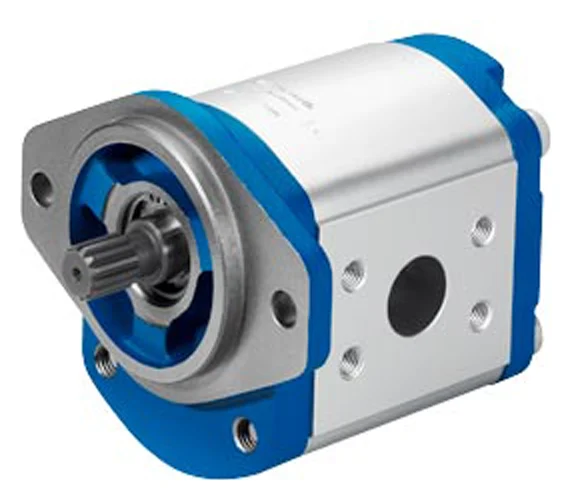

Hydraulic gear pump A simple, rugged pump that moves oil with meshing gears, for machines and mobile equipment.

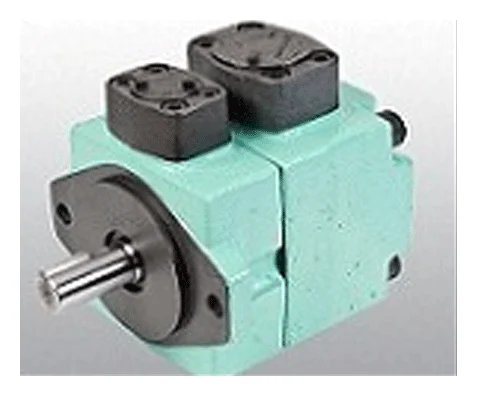

Vane pump and double pump A quiet pump with sliding vanes, available as single or double units for machine tools and presses.

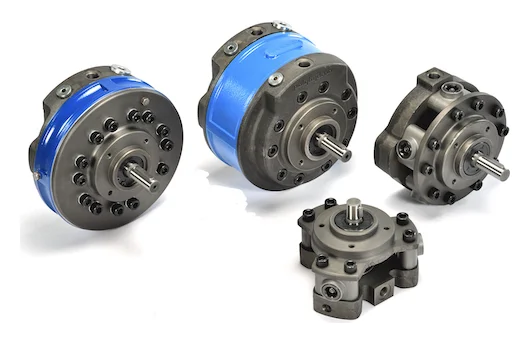

Radial piston pump A high-pressure pump with pistons set around a shaft, for high-pressure power packs and test equipment.
