Valves and controls · Directional valves

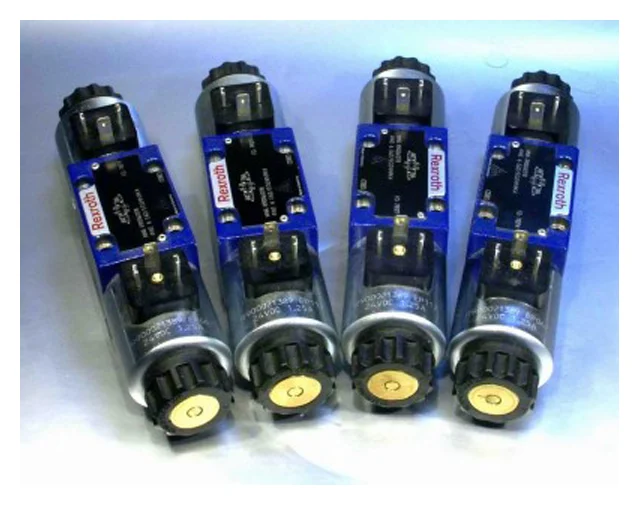

Directional control valve

A valve that sends oil to one side or the other of a cylinder or motor, operated by solenoid, hand or pilot.

Directional control valve
Get a quote Contact us

We usually reply within 1–2 working days with price and delivery.

Used for

  • Machines and presses
  • Lifting equipment
  • Test rigs

Specifications

Models we can supply

ModelMakeType or sizeRating
DHEAtosISO 4401-03-02-0-05, subplateMax 80 l/min, 350 bar
DHEPAtosISO 4401 size 06, subplateMax 80 l/min, 420 bar
DHIAtosISO 4401 size 06, subplateMax 60 l/min, 350 bar
DHLAtosISO 4401 size 06, subplateMax 60 l/min, 350 bar
DHZO-T / DKZOR-TAtosISO 4401 subplateMax 180 l/min, 350 bar
DKEAtosISO 4401 size 10, subplateMax 150 l/min, 350 bar
DKEPAtosISO 4401 size 10, subplateMax 150 l/min, 420 bar
DLEHAtosISO size 06, subplateMax 12 l/min, 350 bar
DLEHMAtosISO size 06, subplateMax 30 l/min, 350 bar
DPHEAtosISO 4401 sizes 10, 16, 25 and 32, subplateMax 1000 l/min, 350 bar
DPHLAtosISO 4401 sizes 10, 16, 25 and 32, subplateMax 1000 l/min, 350 bar
DPZO-LAtosISO 4401 subplateMax 3500 l/min, 350 bar
DPZO-TAtosISO 4401 subplateMax 1600 l/min, 350 bar
HFAtosISO 4401 modularMax 60 l/min, 350 bar
4DL06SCDPolyhydronD.C.VALVE NG-06NG-06
4DL06SCSPolyhydronD.C.VALVE NG-06NG-06
4DL06SESPolyhydronD.C.VALVE NG-06NG06
4DL06SFSPolyhydronD.C.VALVE NG-06NG06
4DL06SHDPolyhydronD.C.VALVE NG-06NG06
4DL06SHSPolyhydronD.C.VALVE NG-06NG06
4DL06SJDPolyhydronD.C.VALVE NG-06NG06
4DL06SJSPolyhydronD.C.VALVE NG-06NG06
4DL10PolyhydronISO 4401-AC-05-4-A (CETOP 05 / D05)Max pressure 350 (700 HP option) bar
4DL10SUS10PolyhydronD.C.VALVE NG-10NG-10
4DP10PolyhydronISO 4401-AC-05-4-A (CETOP 05 / D05)Max pressure 350 (700 HP option) bar
4ED10DSD24PolyhydronSOL D.C.VALVE NG-10NG-10
4RDL02PolyhydronFactory standardMax pressure 700 open crossover / 500 closed crossover bar
DE06PolyhydronISO 4401-03-02 (CETOP 03 / D03)Max pressure 315 bar
DE10PolyhydronISO 4401-05 (CETOP 05 / NFPA D05)Max pressure 315 bar
DES10-20PolyhydronThreaded body (company standard)Max pressure 350 bar
DL06PolyhydronISO 4401-03-02 (CETOP 03 / D03)Max pressure 315 bar
DLS10-20PolyhydronThreaded body (company standard)Max pressure 350 bar
DLS20S-SP-14PolyhydronD.C.VALVE NG-20NG-20
PGZ63C12VPolyhydronSPARESNG-10
PGZ63C24VPolyhydronSPARESNG-10
PWZ63C110VPolyhydronSPARESNG-10
DSG-01-2B2-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2B2-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2B3-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2B3-D*/R*YukenDSG-01 seriesMax 38 l/min, up to 315 kgf/cm²
DSG-01-2B8-A*YukenDSG-01 seriesMax 25 l/min, up to 315 kgf/cm²
DSG-01-2B8-D*/R*YukenDSG-01 seriesMax 25 l/min, up to 315 kgf/cm²
DSG-01-2D2-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D2-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D3-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D3-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D7-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D7-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-2D8-A*YukenDSG-01 seriesMax 40 l/min, up to 315 kgf/cm²
DSG-01-2D8-D*/R*YukenDSG-01 seriesMax 35 l/min, up to 315 kgf/cm²
DSG-01-3C2-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C2-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C3-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C3-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C4-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C4-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C5-A*YukenDSG-01 seriesMax 45 l/min, up to 250 kgf/cm²
DSG-01-3C5-D*/R*YukenDSG-01 seriesMax 45 l/min, up to 250 kgf/cm²
DSG-01-3C7-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C7-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C8-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C8-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C9-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C9-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C10-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C10-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C11-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C11-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C12-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C12-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C40-A*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C40-D*/R*YukenDSG-01 seriesMax 63 l/min, up to 315 kgf/cm²
DSG-01-3C60-A*YukenDSG-01 seriesMax 45 l/min, up to 250 kgf/cm²
DSG-01-3C60-D*/R*YukenDSG-01 seriesMax 45 l/min, up to 250 kgf/cm²
DSG-03-2B2-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-2B2-D*/R*YukenDSG-03 seriesMax 110 l/min, up to 315 kgf/cm²
DSG-03-2B3-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-2B3-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2B8-A*YukenDSG-03 seriesMax 26 l/min, up to 315 kgf/cm²
DSG-03-2B8-D*/R*YukenDSG-03 seriesMax 53 l/min, up to 315 kgf/cm²
DSG-03-2D2-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-2D2-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2D3-A*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2D3-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2D7-A*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2D7-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-2D8-A*YukenDSG-03 seriesMax 60 l/min, up to 315 kgf/cm²
DSG-03-2D8-D*/R*YukenDSG-03 seriesMax 60 l/min, up to 315 kgf/cm²
DSG-03-3C2-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-3C2-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C3-A*YukenDSG-03 seriesMax 90 l/min, up to 315 kgf/cm²
DSG-03-3C3-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C4-A*YukenDSG-03 seriesMax 80 l/min, up to 315 kgf/cm²
DSG-03-3C4-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C5-A*YukenDSG-03 seriesMax 30 l/min, up to 315 kgf/cm²
DSG-03-3C5-D*/R*YukenDSG-03 seriesMax 50 l/min, up to 315 kgf/cm²
DSG-03-3C7-A*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C7-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C8-A*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C8-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C9-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-3C9-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C10-A*YukenDSG-03 seriesMax 80 l/min, up to 315 kgf/cm²
DSG-03-3C10-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C11-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-3C11-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C12-A*YukenDSG-03 seriesMax 90 l/min, up to 315 kgf/cm²
DSG-03-3C12-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C40-A*YukenDSG-03 seriesMax 100 l/min, up to 315 kgf/cm²
DSG-03-3C40-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 315 kgf/cm²
DSG-03-3C60-A*YukenDSG-03 seriesMax 70 l/min, up to 250 kgf/cm²
DSG-03-3C60-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 250 kgf/cm²
S-DSG-01-2B2-D*/R*YukenDSG-01 seriesMax 40 l/min, up to 160 kgf/cm²
S-DSG-01-3C2-D*/R*YukenDSG-01 seriesMax 40 l/min, up to 160 kgf/cm²
S-DSG-01-3C4-D*/R*YukenDSG-01 seriesMax 40 l/min, up to 160 kgf/cm²
S-DSG-01-3C40-D*/R*YukenDSG-01 seriesMax 40 l/min, up to 160 kgf/cm²
S-DSG-03-2B2-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 250 kgf/cm²
S-DSG-03-3C2-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 250 kgf/cm²
S-DSG-03-3C4-D*/R*YukenDSG-03 seriesMax 120 l/min, up to 250 kgf/cm²

Dimensions are as supplied by the manufacturer and may change. Ask us to confirm before you order.

How to order

  1. Choose the modelPick it from the table, or tell us the load, size and pressure and we suggest one.
  2. Send us the detailsValve size (for example NG6 or NG10). Spool type. Coil voltage.
  3. We confirmYou get the price, stock position and delivery time, usually within 1–2 working days.
