Hydraulic tools · Crimping, cutting and punching
Hydraulic crimping tools, up to 1000 mm²
Hand-operated hydraulic crimping tools for cable lugs from 6 to 1000 mm², with hexagonal dies.
- Range
- 6 to 1000 mm²
- Force
- 8 to 35 t
- Models
- 8
Used for
- Cable lug crimping for power and control
- Electrical contractors and utilities
- Panel shops
Features
- Hexagonal crimp
- Hand-held models for 6 to 400 mm²
- Split-head models with a remote hand pump for 70 to 1000 mm²
- Standard dies supplied for each model
Specifications
Hand-operated models
| Model | Force (t) | Stroke (mm) | Crimping range (mm²) | Standard dies (mm²) | Weight (kg) | Packed size (mm) | Quote list |
|---|---|---|---|---|---|---|---|
| HLA-CT-70A | 8 | 12 | 6 to 70 | 6, 10, 16, 25, 35, 50, 70 | 2.6 | 140 × 370 × 90 | |
| HLA-CT-300A | 13 | 16 | 16 to 300 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 | 6.6 | 150 × 530 × 100 | |
| HLA-CT-400A | 16 | 24 | 16 to 400 | 16 up to 400 | 15 | 620 × 220 × 100 | |
| HLA-CT-300B | 16 | 30 | 16 to 300 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 | 15 | 570 × 240 × 130 | |
| HLA-CT-400B | 16 | 32 | 50 to 400 | 50, 70, 95, 120, 150, 185, 240, 300, 400 | 17 | 570 × 240 × 130 |
No model matches. Clear the filter to see all models.
Scroll the table sideways to see every column.

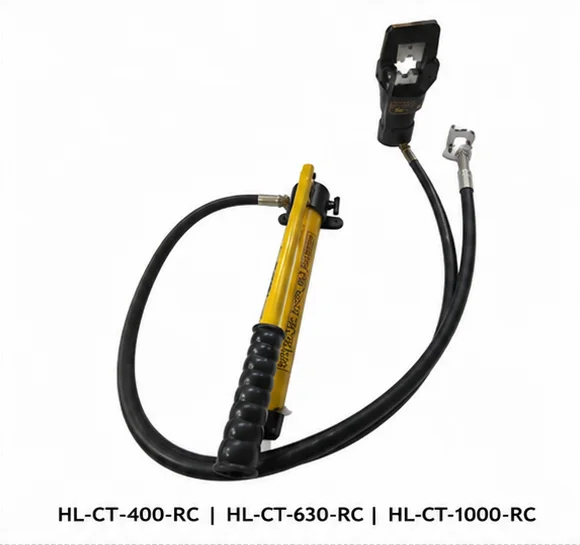

Split-head models with remote pump
| Model | Force (t) | Stroke (mm) | Crimping range (mm²) | Standard dies (mm²) | Weight (kg) | Packed size (mm) | Quote list |
|---|---|---|---|---|---|---|---|
| HLA-CT-400-RC | 14 | 16 | 70 to 400 | 70, 95, 120, 185, 240, 300, 400 | 14.5 | 490 × 260 × 120 | |
| HLA-CT-630-RC | 22 | 22 | 240 to 630 | 240, 300, 400, 500, 630 | 15 | 490 × 260 × 120 | |
| HLA-CT-1000-RC | 35 | 30 | 400 to 1000 | 400, 500, 630, 800, 1000 | 24 | 490 × 260 × 120 |
No model matches. Clear the filter to see all models.
Scroll the table sideways to see every column.
Dimensions are as supplied by the manufacturer and may change. Ask us to confirm before you order.
How to order
- Choose the modelPick it from the table, or tell us the load, size and pressure and we suggest one.
- Send us the detailsThe model code from the table. Quantity. Where it will be used (so we can check it suits).
- We confirmYou get the price, stock position and delivery time.
